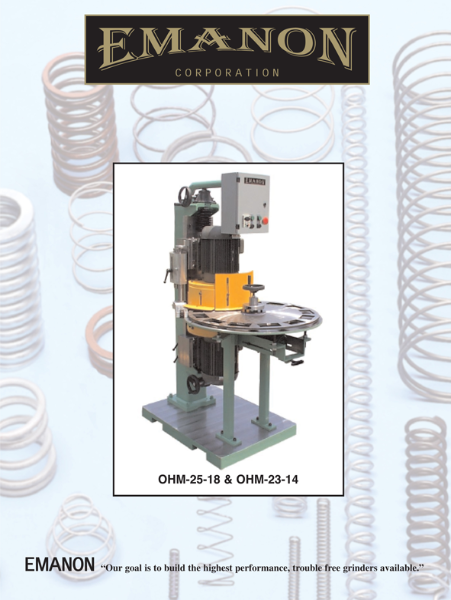

The OHM grinders are simple, rugged machines. These
machines are built using large gibbs and direct drive "Hostile duty"
motors for a long,  trouble free life.

  OHM grinders are equipped with a sliding fixture table for
quick dressing and fixture changes. Digital table speed read out is
standard along with controls for forward/reverse, stop / start
and table speed adjustment.
Emanon Corporation
P.O. Box  8391 Bartlett, IL. 60103

Ph. (630) 464-2036
Fx.  (630) 876-9687
Email: sales@emanongrinders.com
Crash / Crush models
Features:
Direct drive spindles.
Adjustable head tilt.
Fixture jamb protection.
Motors are individually thermally protected.

Options:
480 vac.
Digital head height readouts.
Model
OHM-25-18
OHM-23-14
Aprox Wire range
.015 .125
.008 - .075
Stone diameter
18"
14"
Max. spring O.A.
8.5"
7"
Max. spring O.D.
3"
3"
Carrier speeds from
.05 - 1 rpm
.05 - 1 rpm
Max. fixture O.D.
36"
28"
Carrier to stone centers
15"
14.5"
Spindle motor speed
1,200
1,750
Dust collector ports
6"
5"
Recommended CFM's
1,000
700
Dimensions
42"w x 55"d x 75"h
30"w x 55"d x 75"h
Power  3 phase
31 Amps @ 220vac
21 Amps @ 220vac
Weight
2,650
2,100
