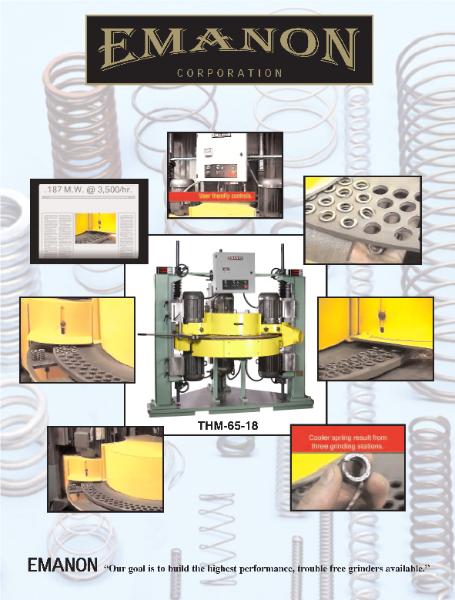

The THM-65-18 has the ability to remove three times the steel as that of a single 18" crush type grinder and has the squareness, accuracy and finishing of a "costly"
down feeder without the inherent loss of production speed found in down feed grinding.The THM is a one pass grinder - One pass grinding yields the highest possible
production speeds. Patent pending, space saving design. Undoubtedly this is the most powerful, stable grinder ever built on a 7' x 6' platform.
Emanon Corporation
P.O. Box  8391 Bartlett, IL. 60103

Ph. (630) 464-2036
Fx. (630) 876-9687
Email: sales@emanongrinders.com
6-18" Wheels = 54 + inches of cutting surface. Three grinding stations exert less force
on the springs allowing them to grind more squarely. Heavy grinding is also made
possible due to the time given for springs to cool between cuts.
Cooler springs mean little or no burning of ends, less burrs and improved surface finish.

3, Grinding stations are the secret:
-1st stage removes the bulk of the material.
-2nd bring the springs close to final length.
-3rd cut removes burrs, aids squareness and improves surface finish.

Direct drive motors:
-No belts, pulleys, spindles or extra bearings equals high efficiency and extremely low
maintenance.

All are equipped with:
-Digital table speed read-out.
-PLC that starts motors one at a time to minimize inrush.
-PLC also allows motors to be individually started and stopped.
-Dressing assembly.
-Adjustable pressure, jamb protection.
-Panel mounted speed and direction controls.

Optional:
-Digital, head position read outs. ---
-Reverse rotation capability
-48Ov conversion

Stone Diameters....18" ea. Six places           Max. spring O.A.............. 9"
Wire range............. .015 thru .312 aprox.       Spring O.D.'s.................. .187- 5" aprox.
Wheel speed.......... 1,200 r.p.m.                     Recommended CFM......3,000 min.
O.A. Dimensions....86"W x 71"D x 88"H        Electrical.............. 91FL.Amps@220v 3ph.
Weight.......................6,500 Ibs. aprox.            Max. weight on carrier..... 1,400 Ibs.
Center of wheels to center of carrier. 20"     Carrier speeds... 5 sec. to 30 min. per/rev.

PIc, motor starters, carrier inverter and switches are protected in a Nema 12 enclosure.
Motors are individually thermally protected.
